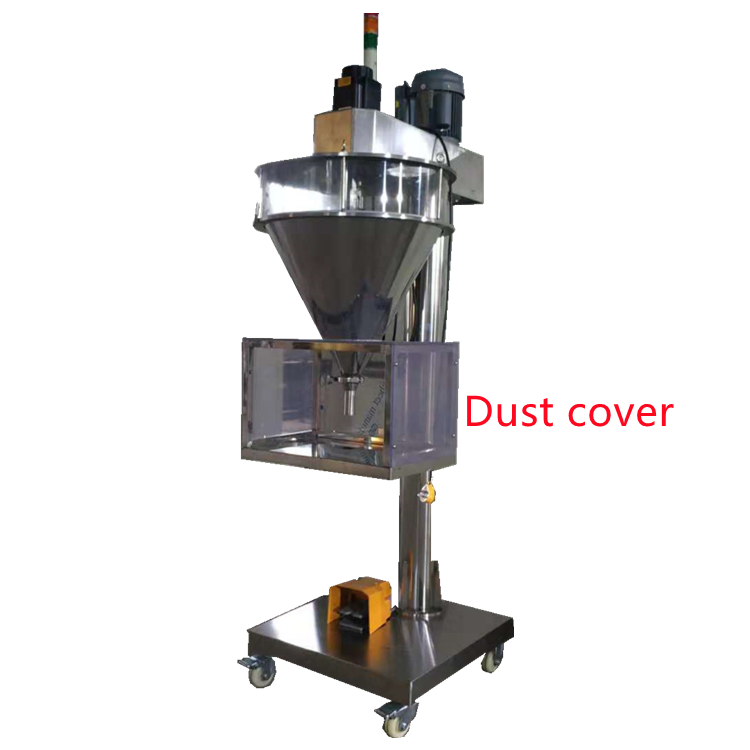

small semi auto pharmaceutical powder filling machine
·Machine introductions:
This style of machine can complete the measuring, filling etc. Because the original design, it more suitable for packing the easy flow or poor liquidity of powder and granular materials, such as veterinary medicine, powder granular additives, sugar, cotton, sugar glucose, monosodium glutamate, solid beverage, solid medicine, carbon powder, talcum powder, pesticide, dye, flavor and fragrances etc.
·Product features
·This style of machine appearance except the motor, the others is all stainless steel;
·Adopting high speed reaction clutch control spiral, has a higher accuracy, speed, torque, long life, etc this advantage.
· Liquid crystal English subtitles shows every working state, operation simple, intuitive, and way of working at a glance.
· Various product adjustment parameters formula can store, for later use, most store 10 formula.
Name |
Semi auto Powder Filler(desktop and vertical) |
Filling Volume |
1--300g. |
Hopper capacity |
15 Litters. |
Filling device |
Auger, screw |
Precision |
±0.3--1% |
Capacity |
20—60 times/min |
Control part |
PLC+Sensor and pedal. |
Voltage |
AC110 V AC220V AC240V |
Power |
0.5Kw. |
Material |
stainless steel |
Net weight |
80 Kg. |
Dimension |
L65 * W65 *H1650 cm |
Function and application |
This is a semi auto filling machine, with small volume, easy to adjust and operate. It can fill various powder, such as, flour, milk powder, spices, seasonings, etc. |
