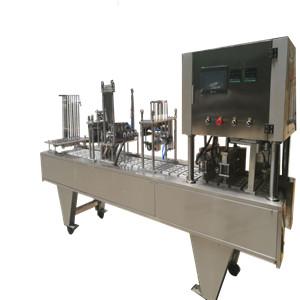

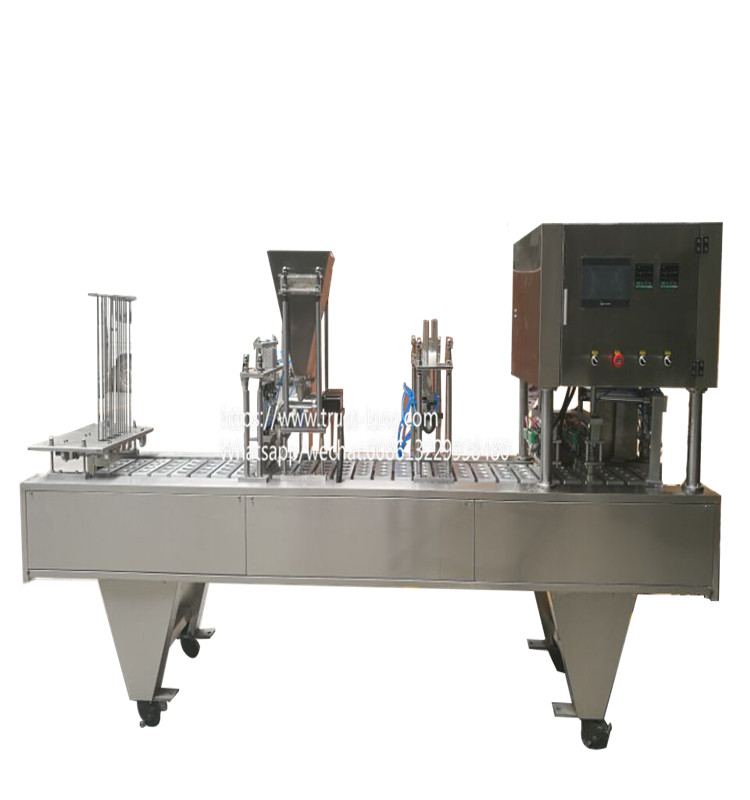

China made k-cup filling machine to the United States

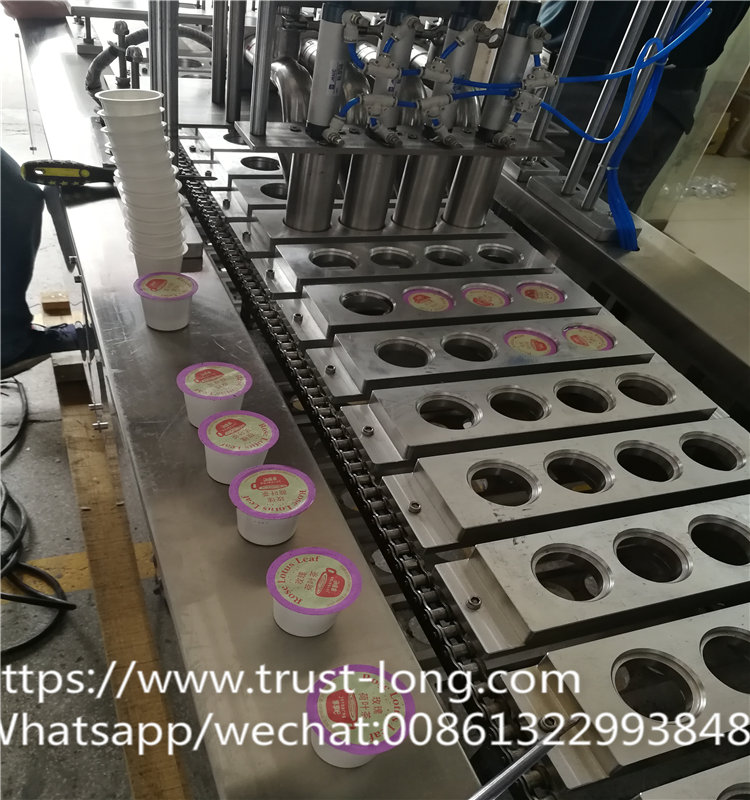

Working process
Can automatically complete the plastic (paper) automatic cup dropping, filling nitrogen, filling powder, press powder, absorb film, sealing, lifting cup.
Equipments:
·Each filling and sealing machine is designed in full compliance with the product, its cup and sealing style. Depending on the output required.
·The PLC control system regulates the function of the machine as s whole or through its individual components.
·Have touching screen that’s easy operate and nice.
·Template drive with high precision indexing box will be more precisely.
·All product contact parts are stainless steel. All of which conform to standards for food grade materials.
·The programming language and scripting commands in English
|

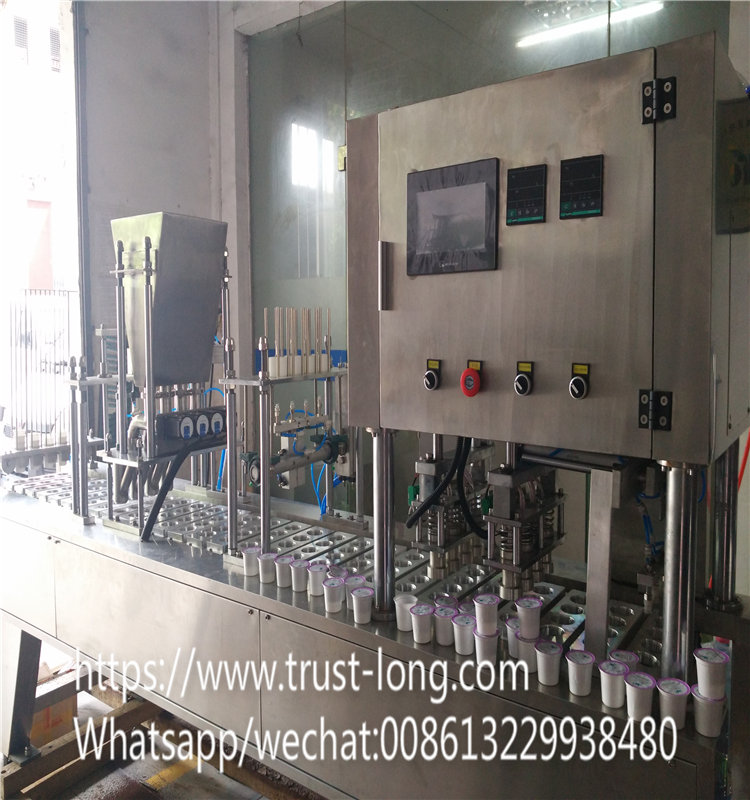

Working processing of K- cup filling sealing machine(CONTACT FOOD MATERIAL AND MACHINE FRAME IS SS 304,MEET FOOD GRADE) |
||
|
Working processing
Working processing |
Drop cups |
1) Pneumatic cylinder control |
|
Filling coffee powder |
1) Screw filling type |
|
|
2) Accuracy 0.5~3+-% |
||
|
3) Filling volume can be adjusted on the touch screen, |
||
|
4) All parts contact coffee made of SS 304, meet food grade |
||
|
Pressing coffee |
1) Compacting coffee type |
|
|
2) Make powder won’t on edge of cup in case sealing not nice |
||
|

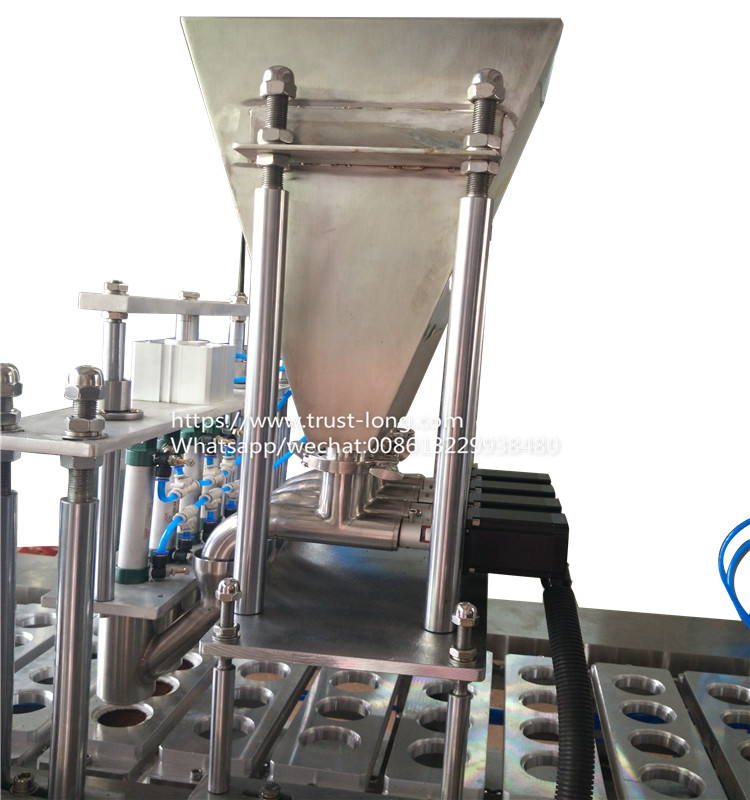

hopper mixing |
1) Mixing for better evenness of coffee powder |
|
|
|
2) Motor control separately |
|
|
Put foil |
1) Pneumatic Cylinder control |
|
|

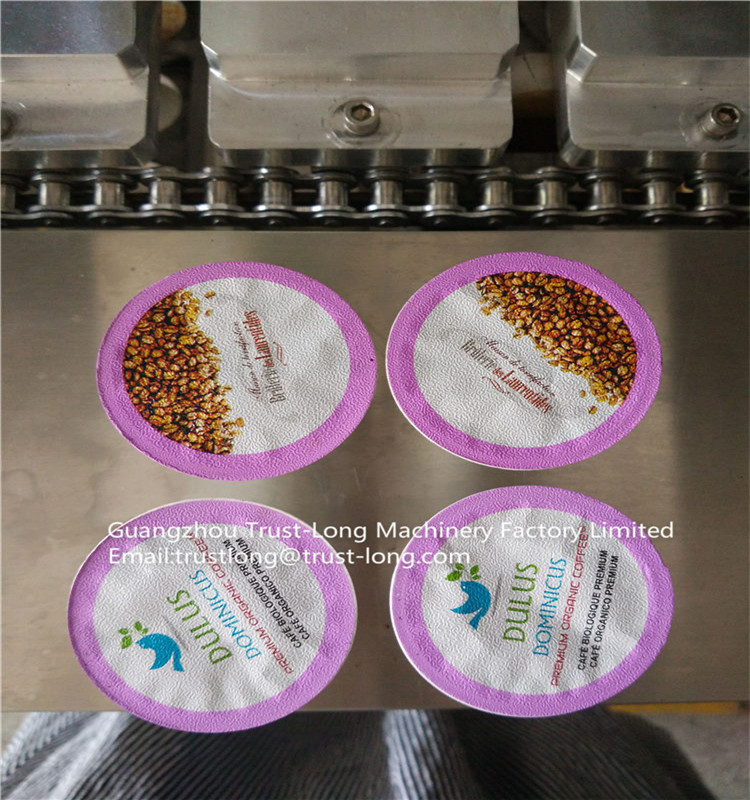

Sealing |
1) Sealing temperature can be adjusted from about 0-400.，seal firmly |
|
|

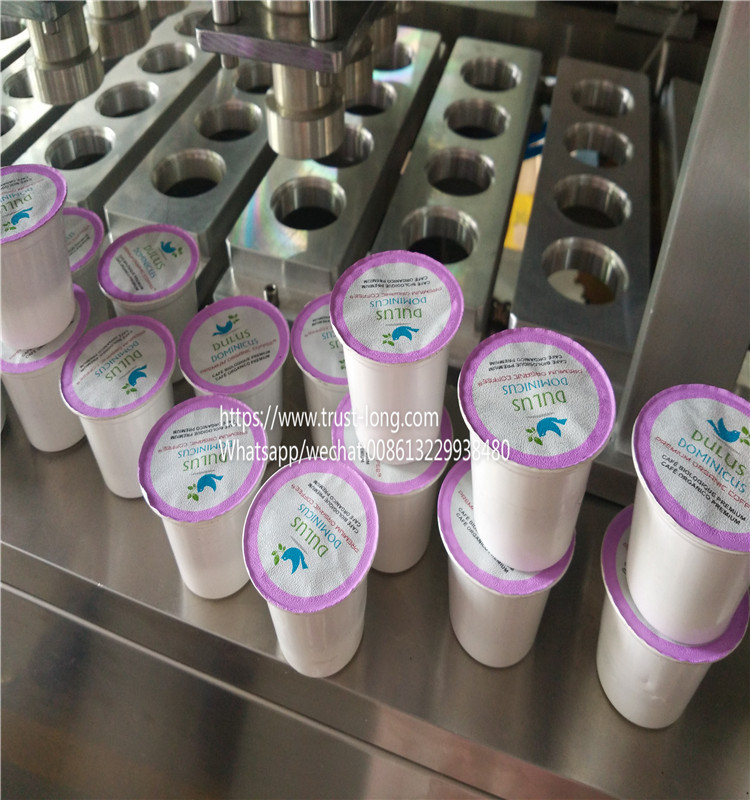

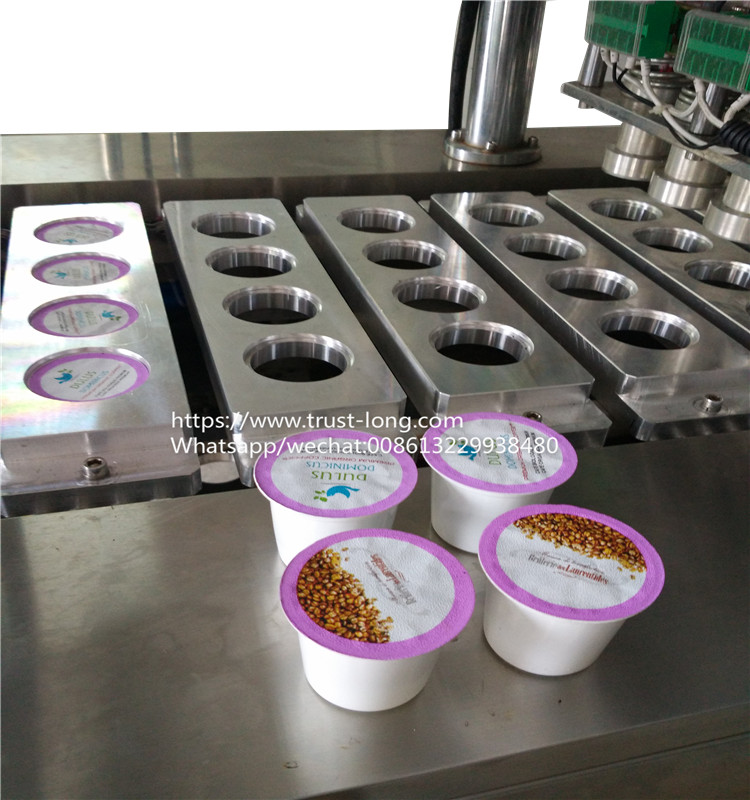

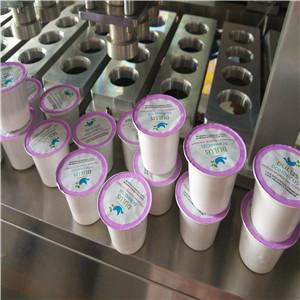

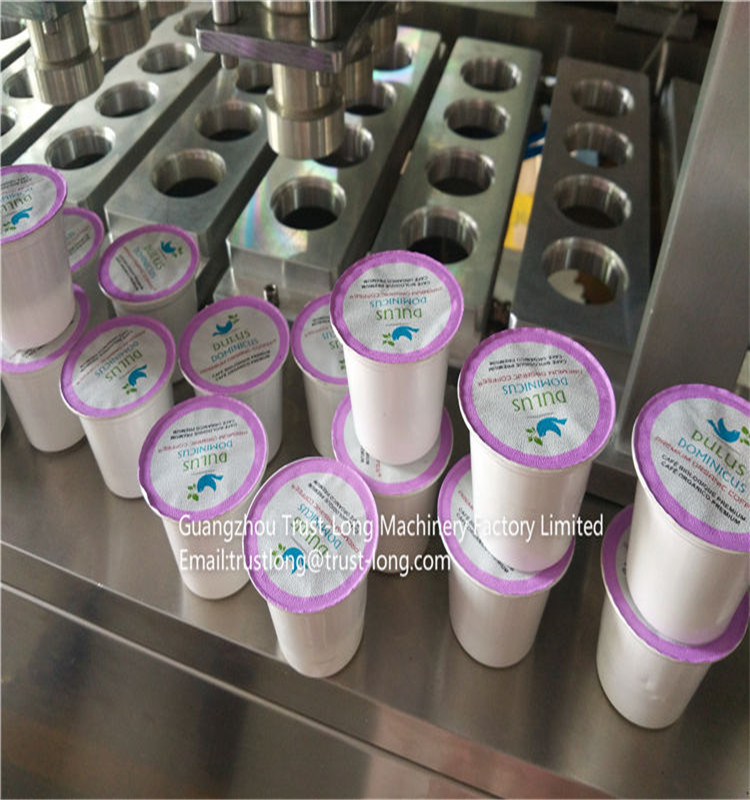

Push out finished cups |
1) Pneumatic Cylinder control |
|
|
2) Lift up finished cups on the conveyor can help to transfer coding |
||
|
Model |
TLC-4 |
|
Voltage |
380V,3 phrases |
|
Power |
4KW |
|
Capacity |
2500cups/h |
|
Filling Range |
0-150ml |
|
Filling type |
Measuring cup |
|
Temperature |
0-300℃ |
|
Seal Material |
PE PP PET |
|
Air Source |
0.4m3/min 8bar |
|
Weight |
750Kg |
|
Overall Dimension |
3500×700×1650mm |
|
Hopper volume |
30L |
