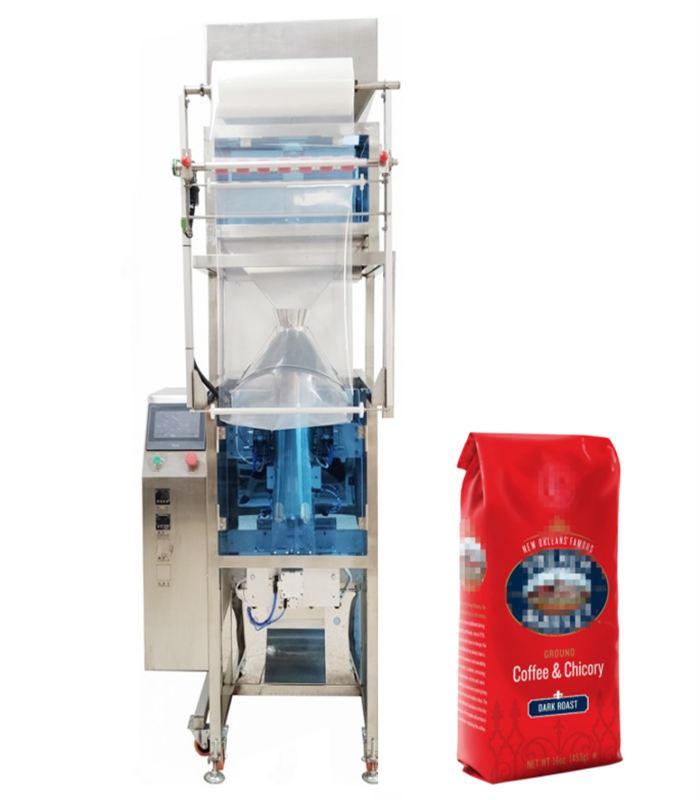

Automatic vertical gusset bag form fill seal packing machine
- PRODUCT DETAIL
1With acrylic protective cover,
2. touch screen,
3.industrial-grade PLC control system,
4. the whole machine is made of 304 material, independent electric control box, independent temperature control,
5. It is wildly used for Suitable for whole grains, hardware accessories, scented tea, powder and other non-sticky light solid materials.
6. It can finish bag-making ,date printing(if needed) , filling ,sealing-cutting .
7..Quantitative piston pump filling ensure packaging volume can be adjusted within accurate range.
8.The machine is reliable and operate easily ,few stoppage .it has a good reputation in home and abroad .
|
Model |
TLV-1000 |
|
Product Name |
Automatic packing machine |
|
Voltage |
220V,50/60HZ，single phrase |
|
Power |
500W |
|
Packing products |
Granules or non-sticky powder |
|
Bag Sealing type |
back type or 3 sides sealing bag |
|
Filling range |
10-1500g×2（take rice for example) |
|
Bag making length |
adjusted |
|
Bag width |
Not over 20 CM(customized) |
|
Filling precise |
0-1% ( according to products) |
|
Air consumption |
0.36m³/min |
|
Air tank storage volume |
≧70 L |
|
Packing speed |
15-25(pcs/min) |
|
Machine weight |
250 KG |
|
Machine Size |
85*105*185cm |
